Series RSL53
-
Dimensions:
- Length: 350mm to 1500mm(14" to 60")
- Height: 53mm
- Width: 18.7mm
-
Features:
- Heavy duty ball bearing slide
- Travel: Full Extension
- Max. Loading: 90kg(198lb)
- Mount: Side Mount
- Function: Lock-in & Out with Handle
- Packing: Unit Packed in 10pair/carton
-
Material & Finish:
- Material: 304 Stainless Steel
- Finish: 304 Stainless Steel Original Color

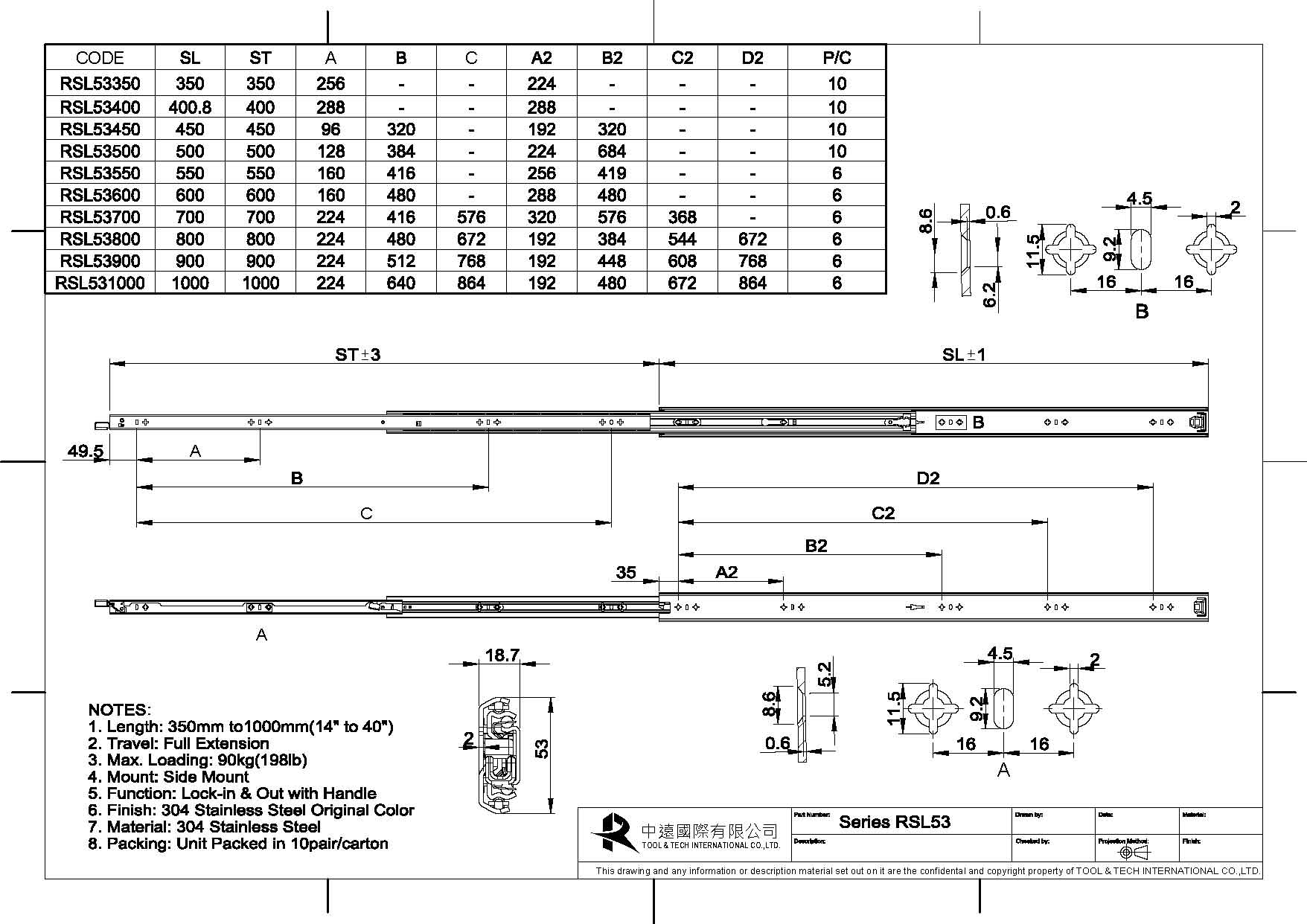

- SPEC
| CODE | SL | SR | A | B | C | A2 | B2 | C2 | D2 | P/C |
| RSL53350 | 350 | 350 | 256 | – | – | 224 | – | – | – | 10 |
| RSL53400 | 400.8 | 400 | 288 | – | – | 288 | – | – | – | 10 |
| RSL53450 | 450 | 450 | 96 | 320 | – | 192 | 320 | – | – | 10 |
| RSL53500 | 500 | 500 | 128 | 384 | – | 224 | 684 | – | – | 10 |
| RSL53550 | 550 | 550 | 160 | 416 | – | 256 | 419 | – | – | 6 |
| RSL53600 | 600 | 600 | 160 | 480 | – | 288 | 480 | – | – | 6 |
| RSL53700 | 700 | 700 | 224 | 416 | 576 | 320 | 576 | 368 | – | 6 |
| RSL53800 | 800 | 800 | 224 | 480 | 672 | 192 | 384 | 544 | 672 | 6 |
| RSL53900 | 900 | 900 | 224 | 512 | 768 | 192 | 448 | 608 | 768 | 6 |
| RSL531000 | 1000 | 1000 | 224 | 640 | 864 | 192 | 480 | 672 | 864 | 6 |
