Series RSF45
-
Dimensions:
- Length: 300mm to 600mm(12" to 24")
- Height: 45.7mm
- Width: 12.7mm
-
Features:
- Disconnect: Leaver disconnect
- Travel: Full Extension
- Max. Loading: 30kg(66lb)
- Mount: Side Mount
- Packing: Unit Packed in 15 pair/carton
-
Material & Finish:
- Material: 304 Stainless Steel
- Finish: 304 Stainless Steel Original Color

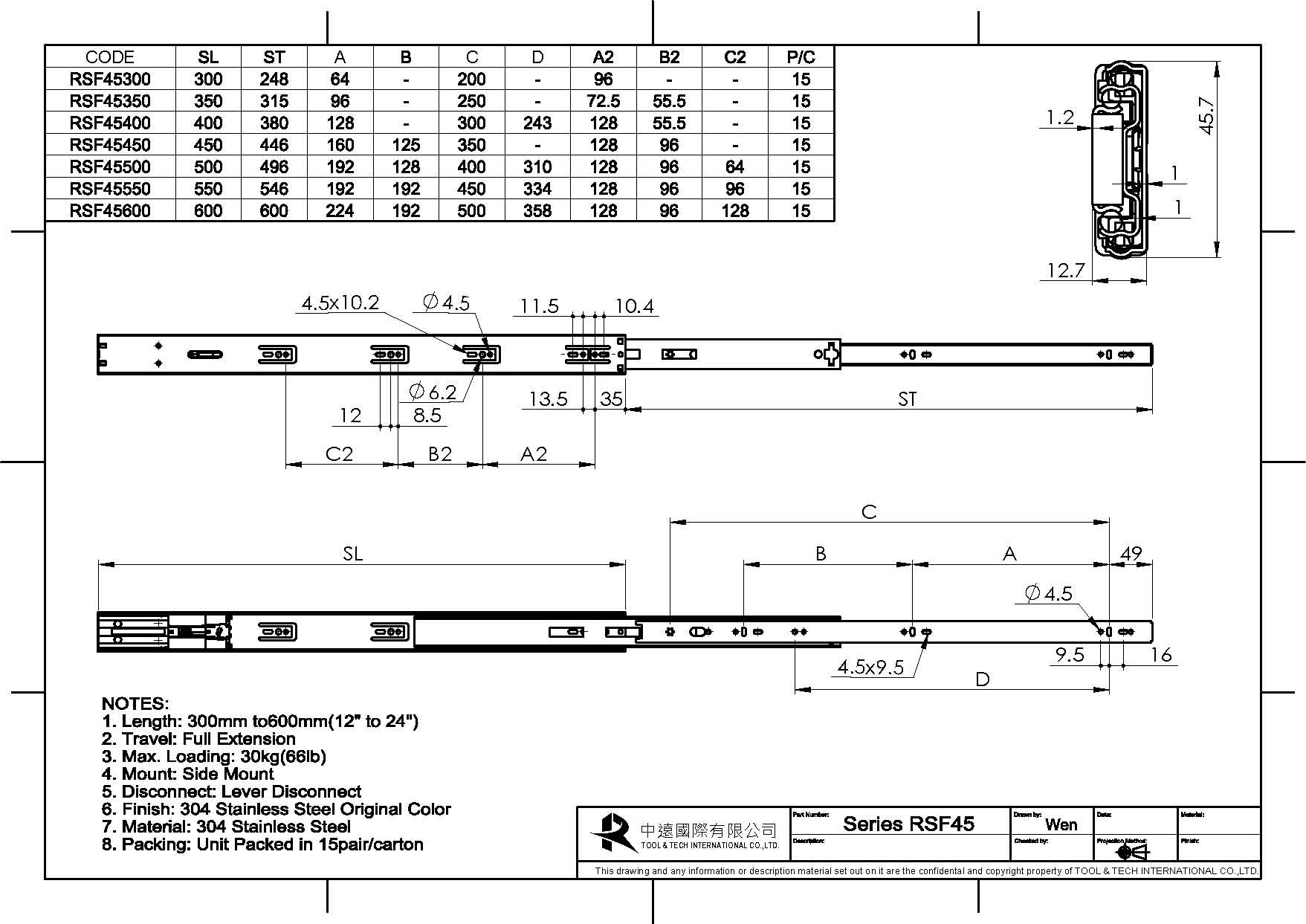

- SPEC
| CODE | SL | SR | A | B | C | D | A2 | B2 | C2 | P/C |
| RSF45300 | 300 | 248 | 64 | – | 200 | – | 96 | – | – | 15 |
| RSF45350 | 350 | 315 | 96 | – | 250 | – | 73 | 56 | – | 15 |
| RSF45400 | 400 | 380 | 128 | – | 300 | 243 | 128 | 56 | – | 15 |
| RSF45450 | 450 | 446 | 160 | 125 | 350 | – | 128 | 96 | – | 15 |
| RSF45500 | 500 | 496 | 192 | 128 | 400 | 310 | 128 | 96 | 64 | 15 |
| RSF45550 | 550 | 546 | 192 | 192 | 450 | 334 | 128 | 96 | 96 | 15 |
| RSF45600 | 600 | 600 | 224 | 192 | 500 | 358 | 128 | 96 | 128 | 15 |
