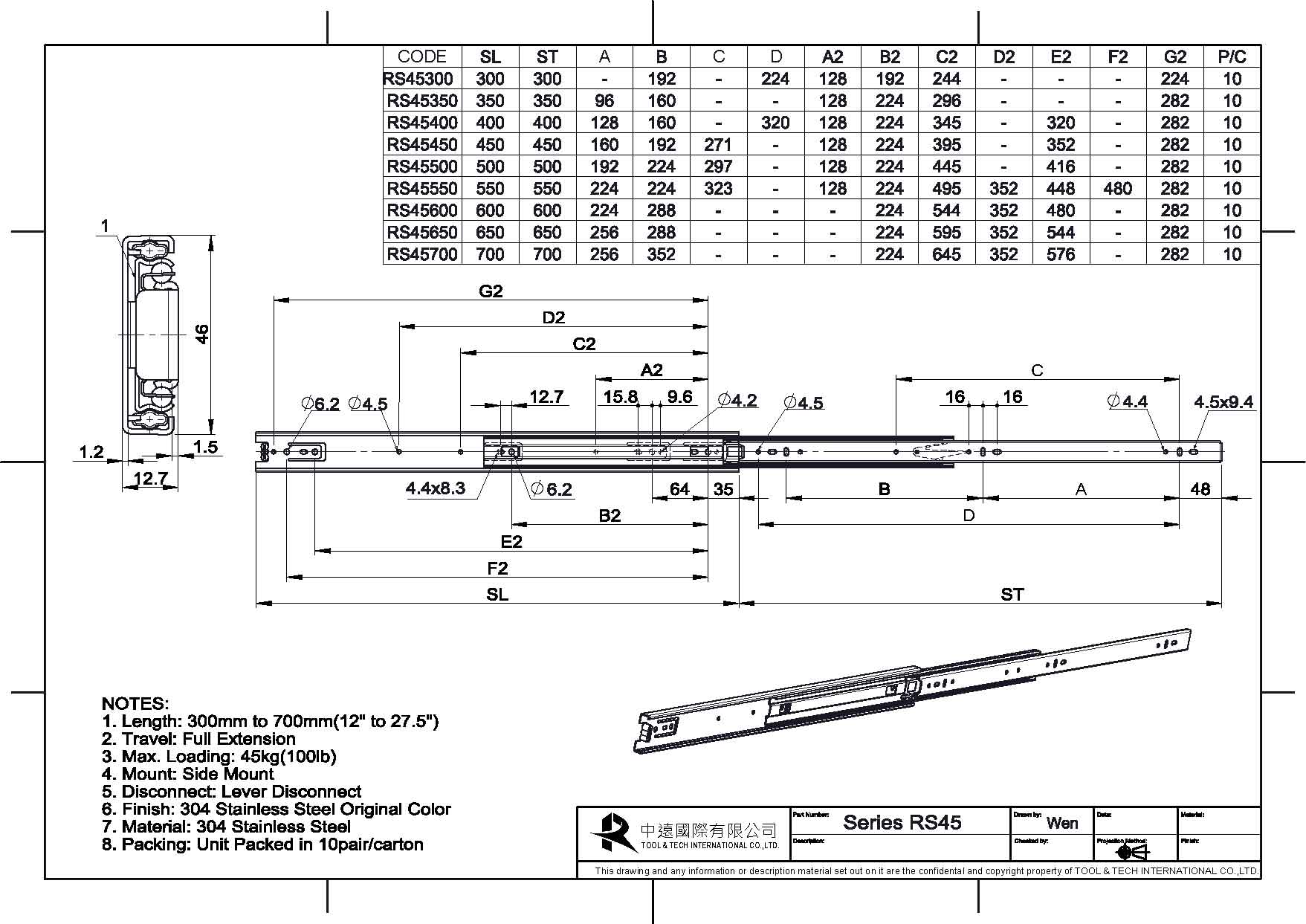

Series RS45
-
Dimensions:
- Length: 300mm to 700mm(12" to 27.5")
- Height: 46mm
- Width: 12.7mm
-
Features:
- Disconnect: Leaver disconnect
- Travel: Full Extension
- Max. Loading: 30kg(66lb)
- Mount: Side Mount
- Packing: Unit Packed in 10 pair/carton
-
Material & Finish:
- Material: 304 Stainless Steel
- Finish: 304 Stainless Steel Original Color
| CODE |
SL |
SR |
A |
B |
C |
D |
A2 |
B2 |
C2 |
D2 |
E2 |
F2 |
G2 |
P/C |
| RS45300 |
300 |
300 |
– |
192 |
– |
224 |
128 |
192 |
244 |
– |
– |
– |
224 |
10 |
| RS45350 |
350 |
350 |
96 |
160 |
– |
– |
128 |
224 |
296 |
– |
– |
– |
282 |
10 |
| RS45400 |
400 |
400 |
128 |
160 |
– |
320 |
128 |
224 |
345 |
– |
320 |
– |
282 |
10 |
| RS45450 |
450 |
450 |
160 |
192 |
271 |
– |
128 |
224 |
395 |
– |
352 |
– |
282 |
10 |
| RS45500 |
500 |
500 |
192 |
224 |
297 |
– |
128 |
224 |
445 |
– |
416 |
– |
282 |
10 |
| RS45550 |
550 |
550 |
224 |
224 |
323 |
– |
128 |
224 |
495 |
352 |
448 |
480 |
282 |
10 |
| RS45600 |
600 |
600 |
224 |
288 |
– |
– |
– |
224 |
544 |
352 |
480 |
– |
282 |
10 |
| RS45650 |
650 |
650 |
256 |
288 |
– |
– |
– |
224 |
595 |
352 |
544 |
– |
282 |
10 |
| RS45700 |
700 |
700 |
256 |
352 |
– |
– |
– |
224 |
645 |
352 |
576 |
– |
282 |
10 |
