HOME PRODUCT Stainless Steel Ball Bearing Slide Series RSL76

Series RSL76

DOWNLOAD PDF DOWNLOAD 3D

Dimensions:
- Length: 450mm to 1500mm(18" to 60")
- Height: 75.3mm
- Width: 19.5mm
Features:
- Heavy duty ball bearing slide
- Travel: Full Extension
- Max. Loading: 180kg(397lb)
- Mount: Side Mount
- Function: Lock-in & Out with Handle
- Packing: Unit Packed in 4pair/carton
Material & Finish:
- Material: 304 Stainless Steel
- Finish: 304 Stainless Steel Original Color

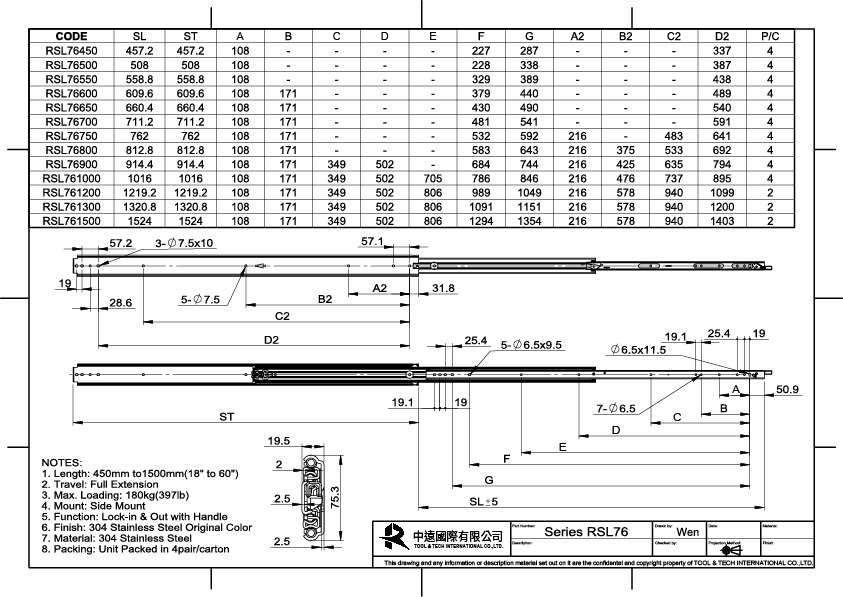

SPEC

CODE	SL	SR	A	B	C	D	E	F	G	A2	B2	C2	D2	P/C
RSL76450	457.2	457.2	108	–	–	–	–	227	287	–	–	–	337	4
RSL76500	508	508	108	–	–	–	–	228	338	–	–	–	387	4
RSL76550	558.8	558.8	108	–	–	–	–	329	389	–	–	–	438	4
RSL76600	609.6	609.6	108	171	–	–	–	379	440	–	–	–	489	4
RSL76650	660.4	660.4	108	171	–	–	–	430	490	–	–	–	540	4
RSL76700	711.2	711.2	108	171	–	–	–	481	541	–	–	–	591	4
RSL76750	762	762	108	171	–	–	–	532	592	216	–	483	641	4
RSL76800	812.8	812.8	108	171	–	–	–	583	643	216	375	533	692	4
RSL76900	914.4	914.4	108	171	349	502	–	684	744	216	425	635	794	4
RSL761000	1016	1016	108	171	349	502	705	786	846	216	476	737	895	4
RSL761200	1219.2	1219.2	108	171	349	502	806	989	1049	216	578	940	1099	2
RSL761300	1320.8	1320.8	108	171	349	502	806	1091	1151	216	578	940	1200	2
RSL761500	1524	1524	108	171	349	502	806	1294	1354	216	578	940	1403	2
