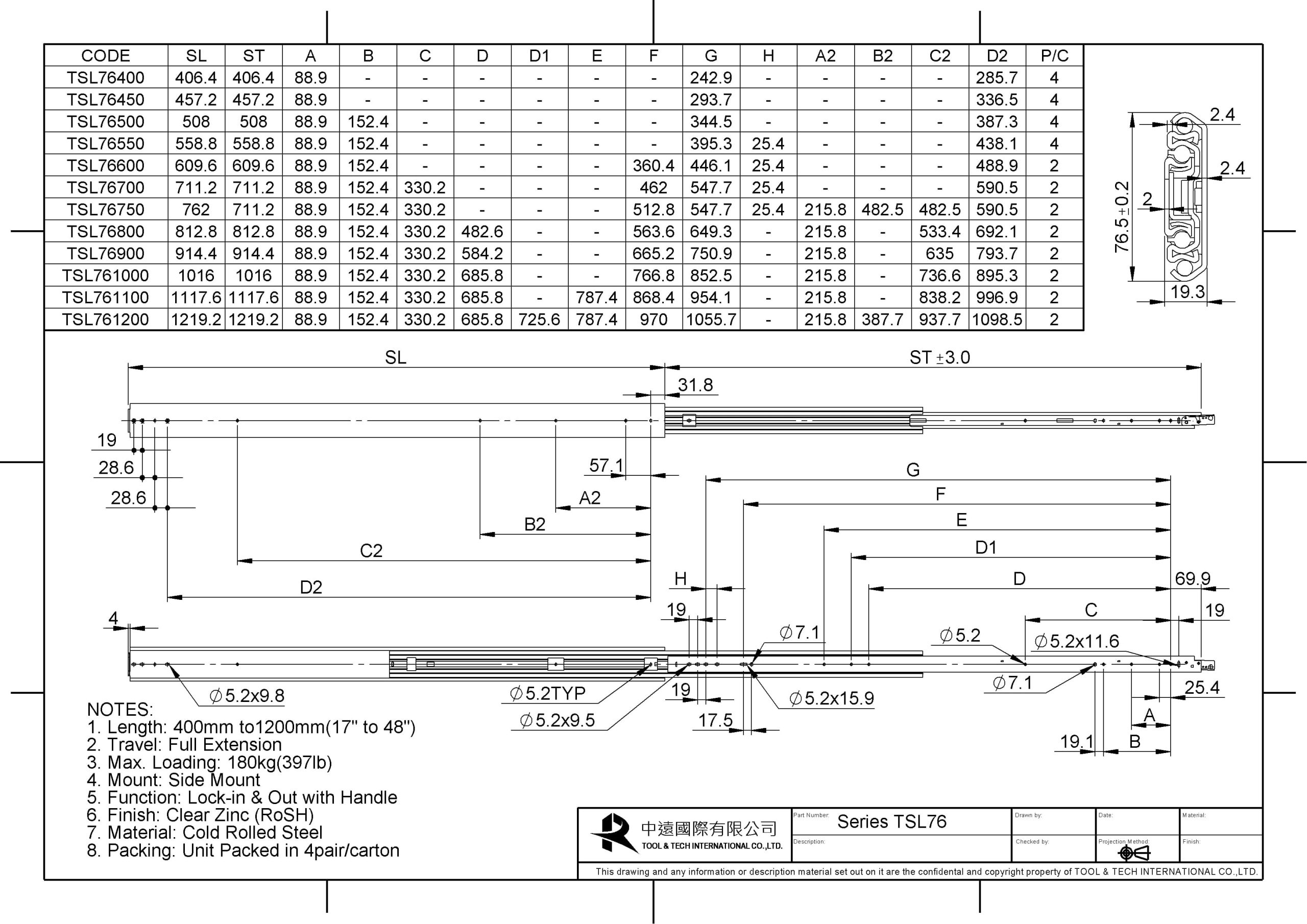

Series TSL76
-
Dimensions:
- Length: 400mm to1200mm(17" to 48")
- Height: 76.5mm
- Width: 19.3mm
-
Features:
- Heavy duty ball bearing slide
- Travel: Full Extension
- Max. Loading: 180kg(397lb)
- Mount: Side Mount
- Function: Lock-in & Out with Handle
- Packing: Unit Packed in 4pair/carton
-
Material & Finish:
- Finish: Clear Zinc (RoSH)
- Material: Cold Rolled Steel
| CODE |
SL |
ST |
A |
B |
C |
D |
D1 |
E |
F |
G |
H |
A2 |
B2 |
C2 |
D2 |
P/C |
| TSL76400 |
406.4 |
406.4 |
88.9 |
– |
– |
– |
– |
– |
– |
242.9 |
– |
– |
– |
– |
285.7 |
4 |
| TSL76450 |
457.2 |
457.2 |
88.9 |
– |
– |
– |
– |
– |
– |
293.7 |
– |
– |
– |
– |
336.5 |
4 |
| TSL76500 |
508 |
508 |
88.9 |
152.4 |
– |
– |
– |
– |
– |
344.5 |
– |
– |
– |
– |
387.3 |
4 |
| TSL76550 |
558.8 |
558.8 |
88.9 |
152.4 |
– |
– |
– |
– |
– |
395.3 |
25.4 |
– |
– |
– |
438.1 |
4 |
| TSL76600 |
609.6 |
609.6 |
88.9 |
152.4 |
– |
– |
– |
– |
360.4 |
446.1 |
25.4 |
– |
– |
– |
488.9 |
2 |
| TSL76700 |
711.2 |
711.2 |
88.9 |
152.4 |
330.2 |
– |
– |
– |
462 |
547.7 |
25.4 |
– |
– |
– |
590.5 |
2 |
| TSL76750 |
762 |
711.2 |
88.9 |
152.4 |
330.2 |
– |
– |
– |
512.8 |
547.7 |
25.4 |
215.8 |
482.5 |
482.5 |
590.5 |
2 |
| TSL76800 |
812.8 |
812.8 |
88.9 |
152.4 |
330.2 |
482.6 |
– |
– |
563.6 |
649.3 |
– |
215.8 |
– |
533.4 |
692.1 |
2 |
| TSL76900 |
914.4 |
914.4 |
88.9 |
152.4 |
330.2 |
584.2 |
– |
– |
665.2 |
750.9 |
– |
215.8 |
– |
635 |
793.7 |
2 |
| TSL761000 |
1016 |
1016 |
88.9 |
152.4 |
330.2 |
685.8 |
– |
– |
766.8 |
852.5 |
– |
215.8 |
– |
736.6 |
895.3 |
2 |
| TSL761100 |
1117.6 |
1117.6 |
88.9 |
152.4 |
330.2 |
685.8 |
– |
787.4 |
868.4 |
954.1 |
– |
215.8 |
– |
838.2 |
996.9 |
2 |
| TSL761200 |
1219.2 |
1219.2 |
88.9 |
152.4 |
330.2 |
685.8 |
725.6 |
787.4 |
970 |
1055.7 |
– |
215.8 |
387.7 |
937.7 |
1098.5 |
2 |
