Series TS53

DOWNLOAD PDF DOWNLOAD STEP

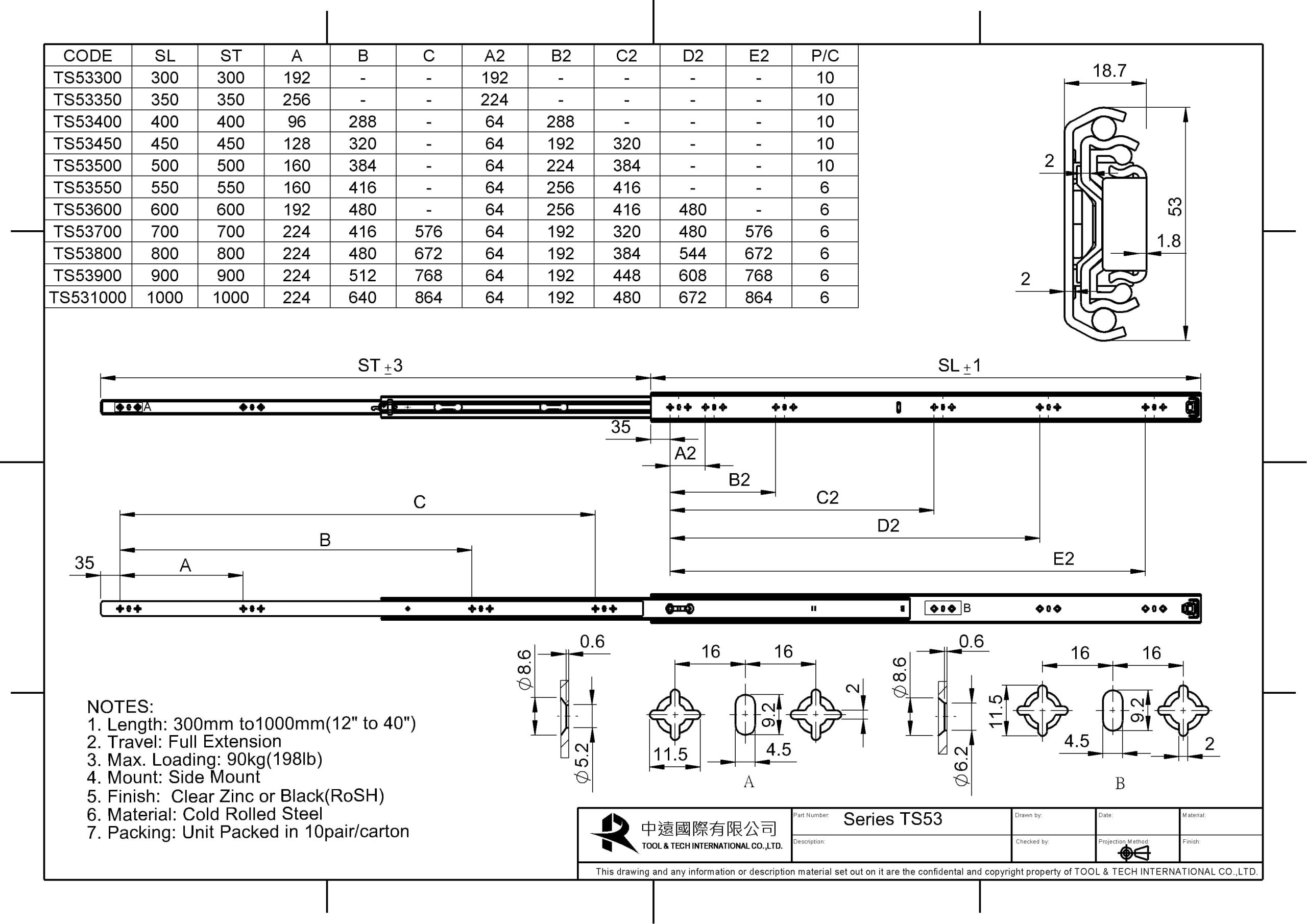

Dimensions:
- Length: 300mm to 1000mm(12" to 40"))
- Height: 53mm
- Width: 18.7mm
Features:
- Heavy duty ball bearing slide
- Travel: Full Extension
- Max. Loading: 90kg(198lb)
- Mount: Side Mount
- Packing: Unit Packed in 10pair/carton
Material & Finish:
- Material: Cold Rolled Steel
- Finish: Clear Zinc (RoSH)

SPEC

CODE	SL	ST	A	B	C	A2	B2	C2	D2	E2	P/C
C58300	300	300	192	–	–	192	–	–	–	–	10
C58350	350	350	256	–	–	224	–	–	–	–	10
C58400	400	400	96	288	–	64	288	–	–	–	10
C58450	450	450	128	320	–	64	192	320	–	–	10
C58500	500	500	160	384	–	64	224	384	–	–	10
C58550	550	550	160	416	–	64	256	416	–	–	6
C58600	600	600	192	480	–	64	256	416	480	–	6
C58700	700	700	224	416	576	64	192	320	480	576	6
C58800	800	800	224	480	672	64	192	384	544	672	6
C58900	900	900	224	512	768	64	192	448	608	768	6
C581000	1000	1000	224	640	864	64	192	480	672	864	6
