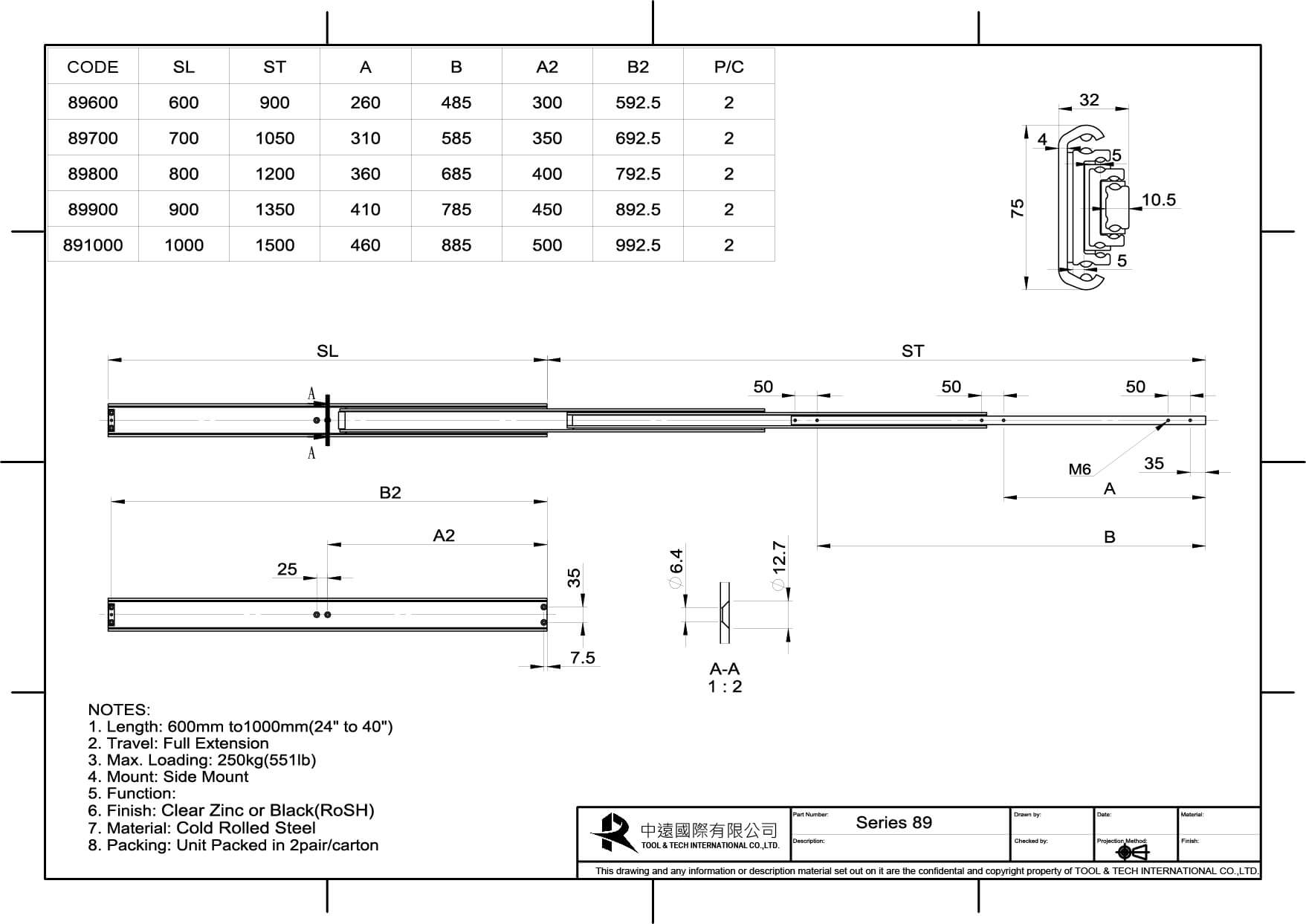

Series 89
-
Dimensions:
- Length: 600mm to1000mm(24" to 40")
- Height: 75mm
- Width: 32mm
-
Features:
- Heavy duty ball bearing slide
- Travel: Extra Extension
- Max. Loading: 250kg(551lb)
- Mount: Side Mount
- Packing: Unit Packed in 2pair/carton
-
Material & Finish:
- Finish: Clear Zinc (RoSH)
- Material: Cold Rolled Steel
- SPEC
| CODE | SL | ST | A | B | A2 | B2 | P/C |
| 89600 | 600 | 900 | 260 | 485 | 300 | 592.5 | 2 |
| 89700 | 700 | 1050 | 310 | 585 | 350 | 692.5 | 2 |
| 89800 | 800 | 1200 | 360 | 685 | 400 | 792.5 | 2 |
| 89900 | 900 | 1350 | 410 | 785 | 450 | 892.5 | 2 |
| 891000 | 1000 | 1500 | 460 | 885 | 500 | 992.5 | 2 |
