Series 64
-
Dimensions:
- Length: 400mm to 800mm(16" to 32")
- Height: 56mm
- Width: 19.1mm
-
Features:
- Heavy duty ball bearing slide
- Travel: Full Extension
- Max. Loading: 90kg(198lb)
- Mount: Side Mount
- Function: Soft Closing
- Packing: Unit Packed in 6pair/carton
-
Material & Finish:
- Finish: Clear Zinc (RoSH)
- Material: Cold Rolled Steel

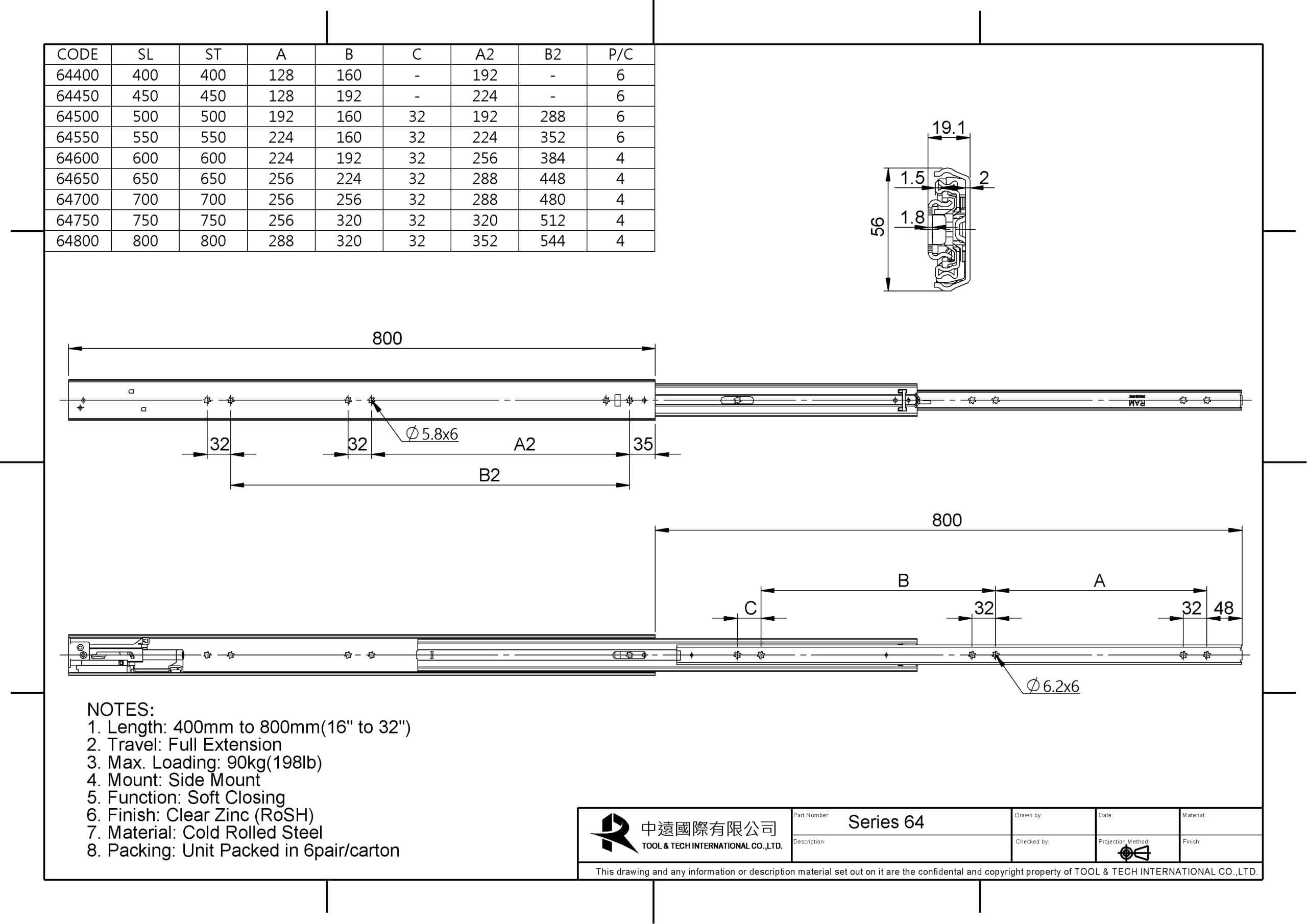

- SPEC
| CODE | SL | ST | A | B | C | A2 | B2 | P/C |
| 64400 | 400 | 400 | 128 | 160 | – | 192 | – | 6 |
| 64450 | 450 | 450 | 128 | 192 | – | 224 | – | 6 |
| 64500 | 500 | 500 | 192 | 160 | 32 | 192 | 288 | 6 |
| 64550 | 550 | 550 | 224 | 160 | 32 | 224 | 352 | 6 |
| 64600 | 600 | 600 | 224 | 192 | 32 | 256 | 384 | 4 |
| 64650 | 650 | 650 | 256 | 224 | 32 | 288 | 448 | 4 |
| 64700 | 700 | 700 | 256 | 256 | 32 | 288 | 480 | 4 |
| 64750 | 750 | 750 | 256 | 320 | 32 | 320 | 512 | 4 |
| 64800 | 800 | 800 | 288 | 320 | 32 | 352 | 544 | 4 |
