Series TS36
-
Dimensions:
- Length: 250mm to 600mm(10" to 24")
- Height: 37.4mm
- Width: 12.7mm
-
Features:
- Lever disconnect
- Travel: Full Extension
- Max. Loading: 35kg(77lb)
- Mount: Side Mount
- Packing: Unit Packed in 20 pair/carton
-
Material & Finish:
- Material: SPCC
- Finish: Zinc coating

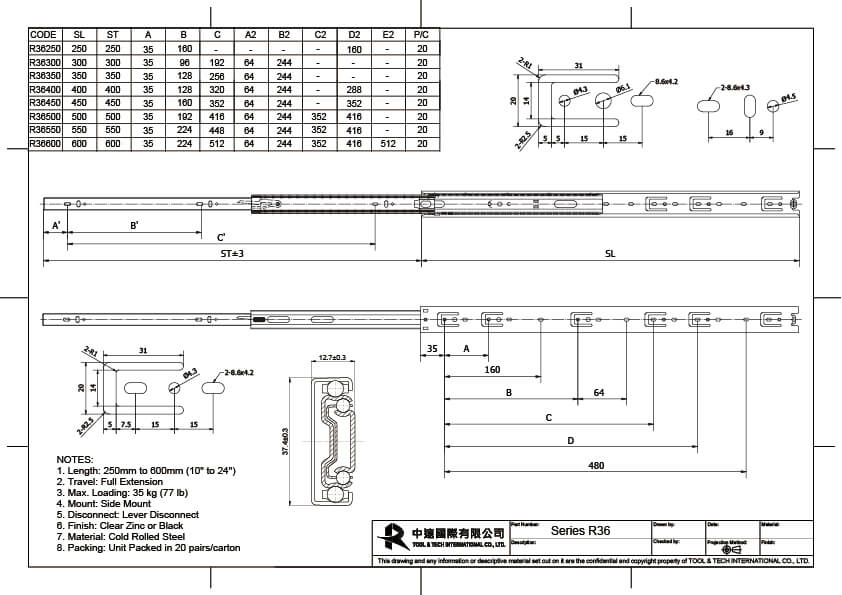

- SPEC
| CODE | SL | ST | A | B | C | A2 | B2 | C2 | D2 | E2 | P/C |
| R36250 | 250 | 250 | 35 | 160 | – | – | – | – | 160 | – | 20 |
| R36300 | 300 | 300 | 35 | 96 | 192 | 64 | 244 | – | – | – | 20 |
| R36350 | 350 | 350 | 35 | 128 | 256 | 64 | 244 | – | – | – | 20 |
| R36400 | 400 | 400 | 35 | 128 | 320 | 64 | 244 | – | 288 | – | 20 |
| R36450 | 450 | 450 | 35 | 160 | 352 | 64 | 244 | – | 352 | – | 20 |
| R36500 | 500 | 500 | 35 | 192 | 416 | 64 | 244 | 352 | 416 | – | 20 |
| R36550 | 550 | 550 | 35 | 224 | 448 | 64 | 244 | 352 | 416 | – | 20 |
| R36600 | 600 | 600 | 35 | 224 | 512 | 64 | 244 | 352 | 416 | 512 | 20 |
