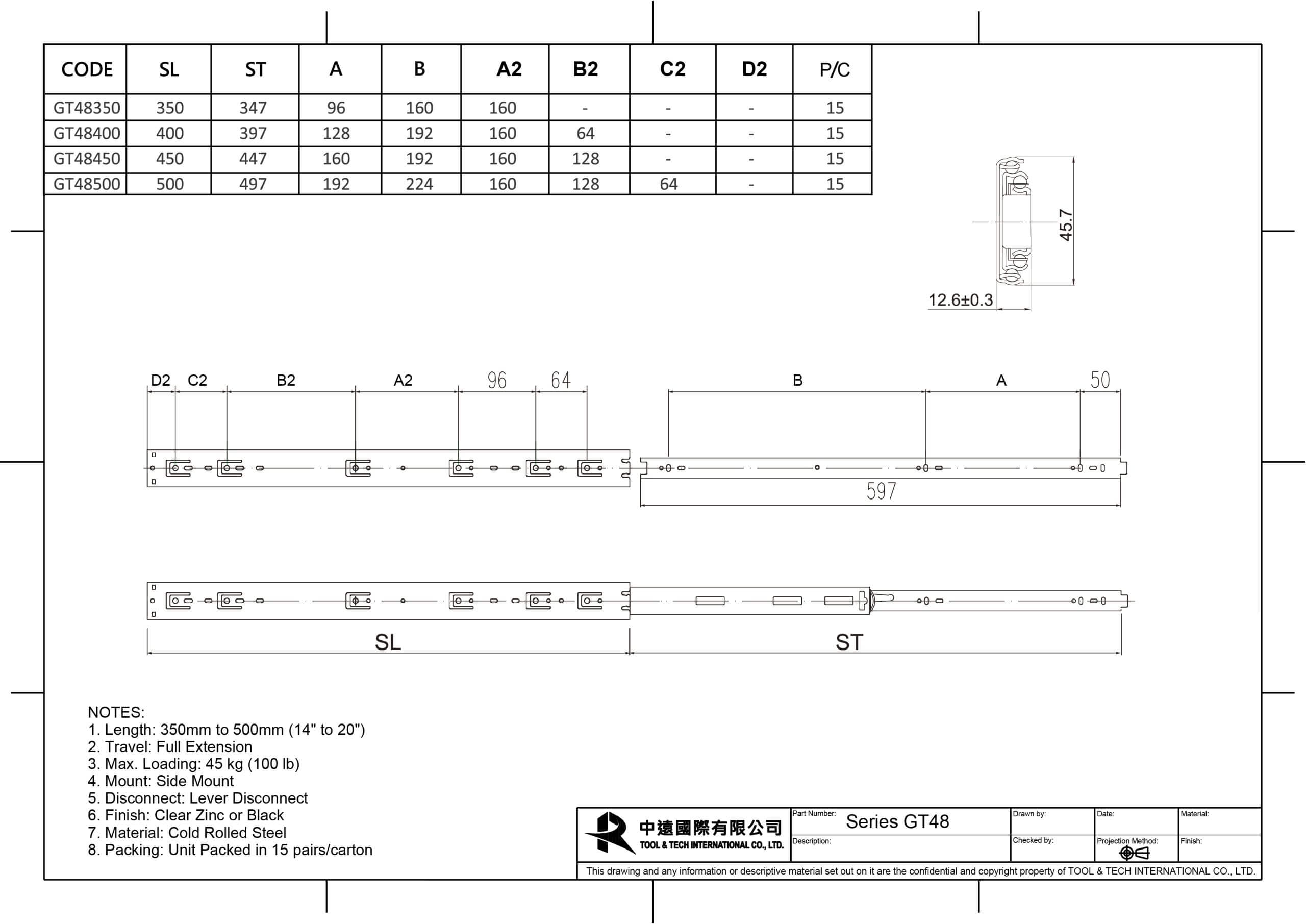

Series GT48
-
Dimensions:
- Length: 350mm to 500mm (14" to 20")
- Height: 45.7mm
- Width: 12.7mm
-
Features:
- Lever disconnect
- Travel: Full Extension
- Max. Loading: 45 kg (100 lb)
- Mount: Side Mount
- Packing: Unit Packed in 15 pair/carton
-
Material & Finish:
- Material: SPCC
- Finish: Zinc coating
- SPEC
| CODE | SL | ST | A | B | A2 | B2 | C2 | D2 | P/C |
| GT48350 | 350 | 347 | 96 | 160 | 160 | – | – | – | 15 |
| GT48400 | 400 | 397 | 128 | 192 | 160 | 64 | – | – | 15 |
| GT48450 | 450 | 447 | 160 | 192 | 160 | 128 | – | – | 15 |
| GT48500 | 500 | 497 | 192 | 224 | 160 | 128 | 64 | – | 15 |
