Series TSF36
-
Dimensions:
- Length: 250mm to 600mm(10" to 24")
- Height: 36mm
- Width: 12.7mm
-
Features:
- Lever disconnect
- Travel: Full Extension
- Max. Loading: 35kg(77lb)
- Mount: Side Mount
- Packing: Unit Packed in 20 pair/carton
-
Material & Finish:
- Material: SPCC
- Finish: Zinc coating

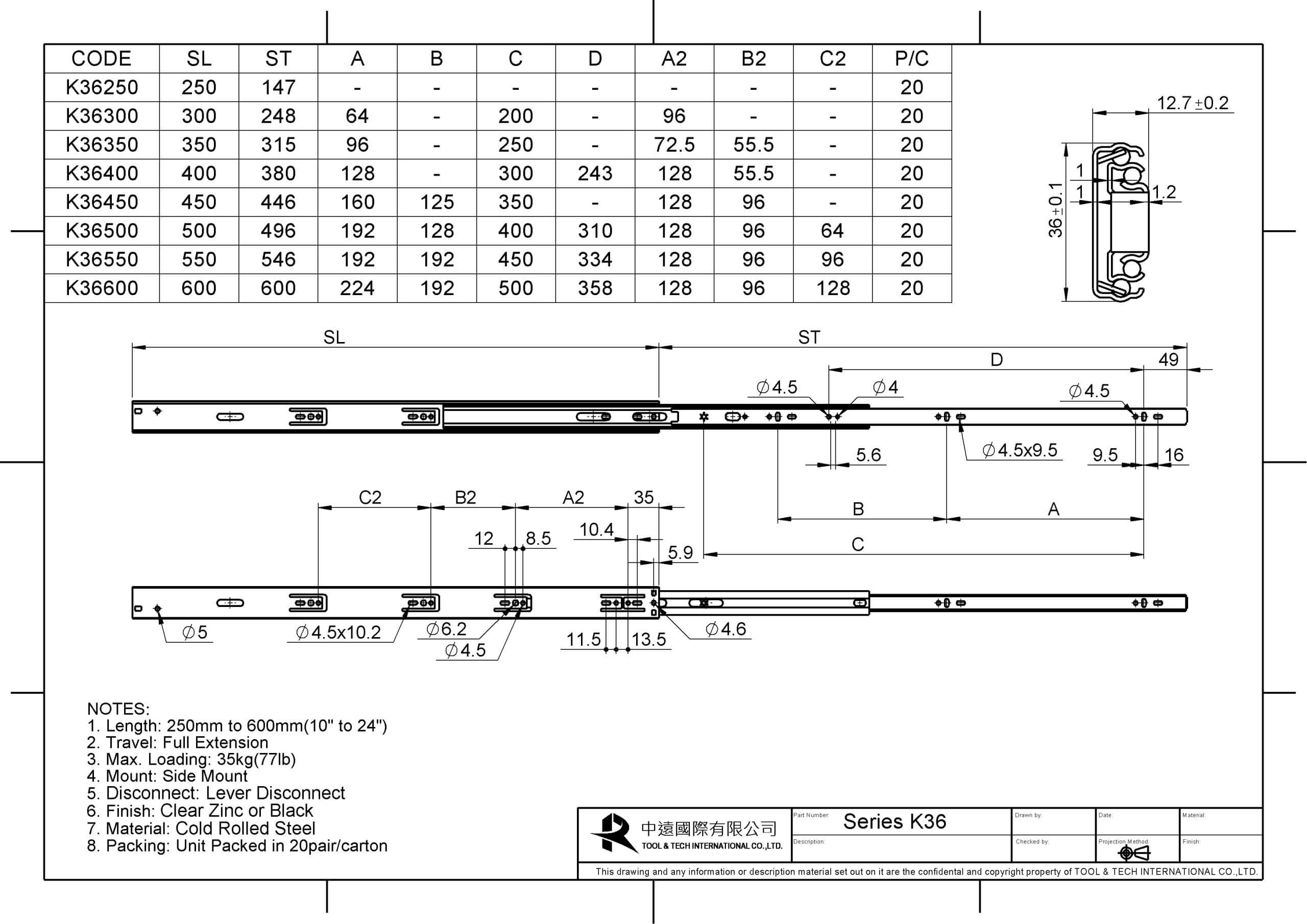

- SPEC
| CODE | SL | ST | A | B | C | D | A2 | B2 | C2 | P/C |
| K36250 | 250 | 147 | – | – | – | – | – | – | – | 20 |
| K36300 | 300 | 248 | 64 | – | 200 | – | 96 | – | – | 20 |
| K36350 | 350 | 315 | 96 | – | 250 | – | 73 | 55.5 | – | 20 |
| K36400 | 400 | 380 | 128 | – | 300 | 243 | 128 | 55.5 | – | 20 |
| K36450 | 450 | 446 | 160 | 125 | 350 | – | 128 | 96 | – | 20 |
| K36500 | 500 | 496 | 192 | 128 | 400 | 310 | 128 | 96 | 64 | 20 |
| K36550 | 550 | 546 | 192 | 192 | 450 | 334 | 128 | 96 | 96 | 20 |
| K36600 | 600 | 600 | 224 | 192 | 500 | 358 | 128 | 96 | 128 | 20 |
