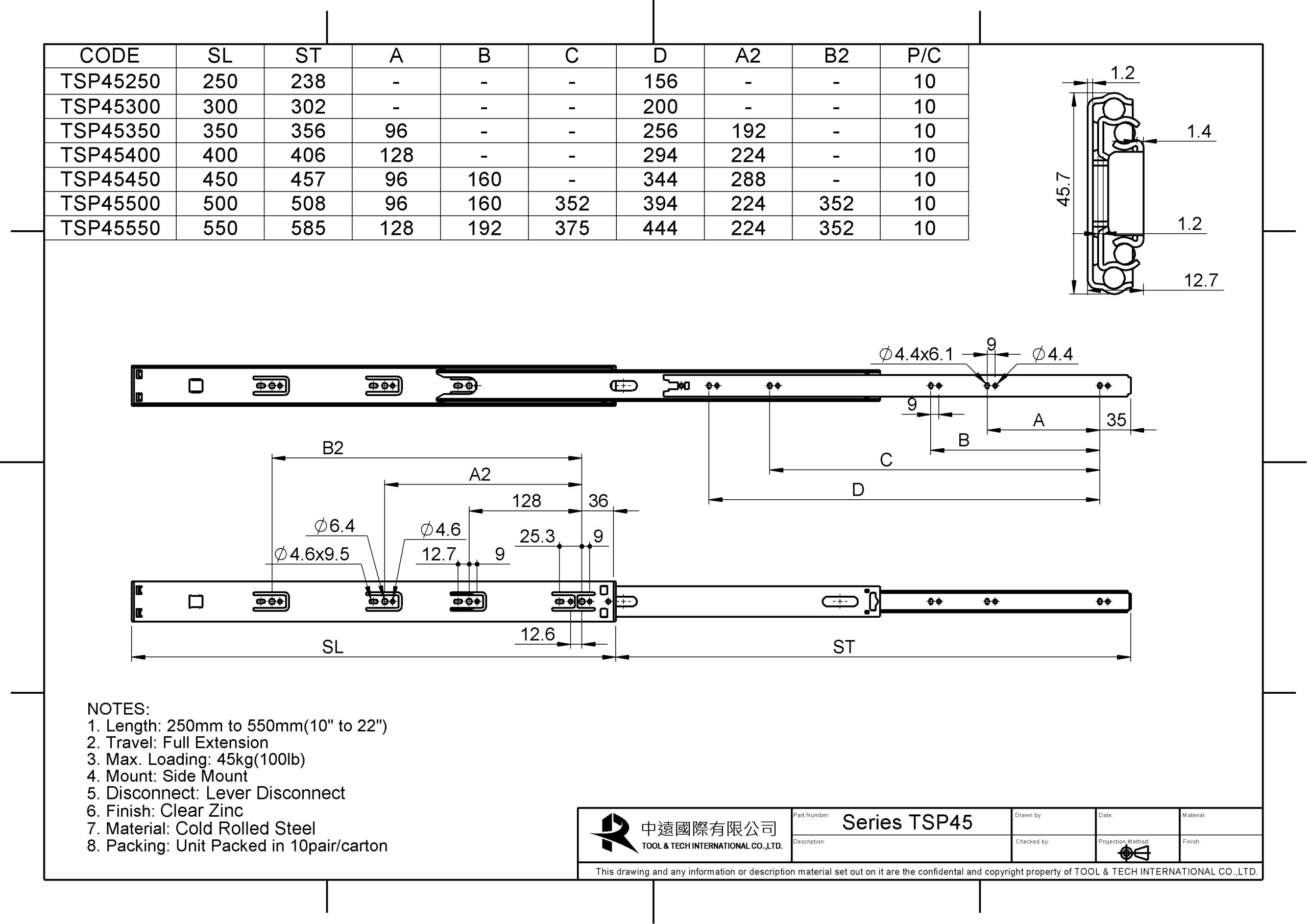

Series TSP45
-
Dimensions:
- Length: 250mm to 550mm(10" to 22")
- Height: 45.5mm
- Width: 12.7mm
-
Features:
- Lever disconnect
- Travel: Full Extension
- Max. Loading: 45kg(100lb)
- Mount: Side Mount
- Packing: Unit Packed in 10 pair/carton
-
Material & Finish:
- Material: SPCC
- Finish: Zinc coating
- SPEC
| CODE | SL | ST | A | B | C | D | A2 | B2 | P/C |
| TSP45250 | 250 | 238 | – | – | – | 156 | – | – | 10 |
| TSP45300 | 300 | 302 | – | – | – | 200 | – | – | 10 |
| TSP45350 | 350 | 356 | 96 | – | – | 256 | 192 | – | 10 |
| TSP45400 | 400 | 406 | 128 | – | – | 294 | 224 | – | 10 |
| TSP45450 | 450 | 457 | 96 | 160 | – | 344 | 288 | – | 10 |
| TSP45500 | 500 | 508 | 96 | 160 | 352 | 394 | 224 | 352 | 10 |
| TSP45550 | 550 | 585 | 128 | 192 | 375 | 444 | 224 | 352 | 10 |
